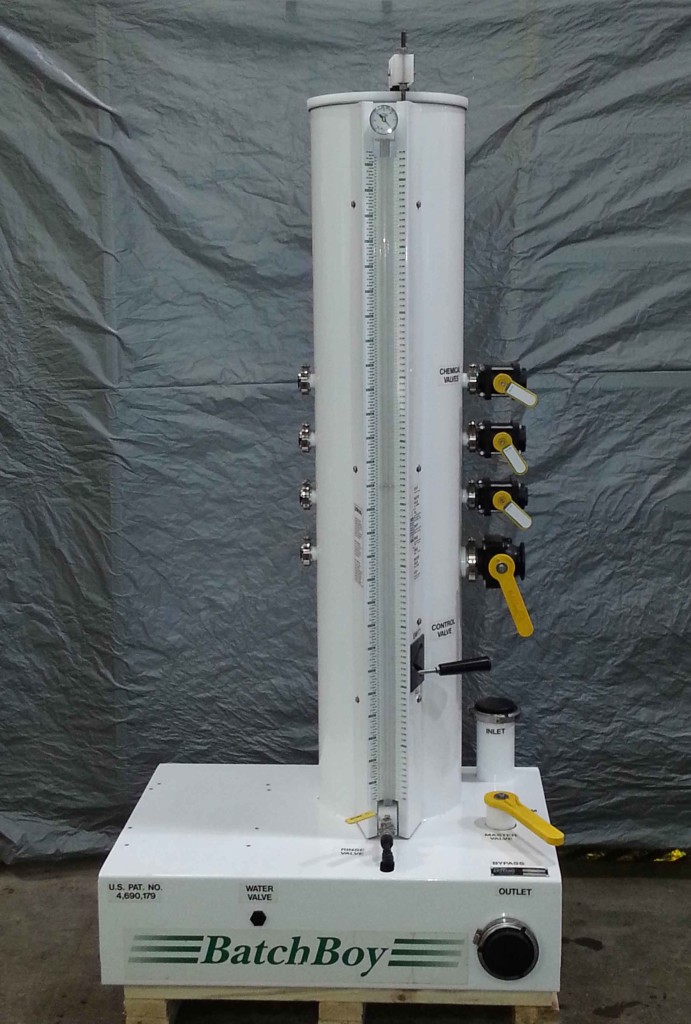

BatchBoy Model 3983
| Description | Notes | Specification |
|---|---|---|
| Height | Overall unit height | 76″ |
| Weight | Total unit weight, empty | 397 lbs. |
| Capacity | Total capacity of chamber | 27 gallons 100 liters |

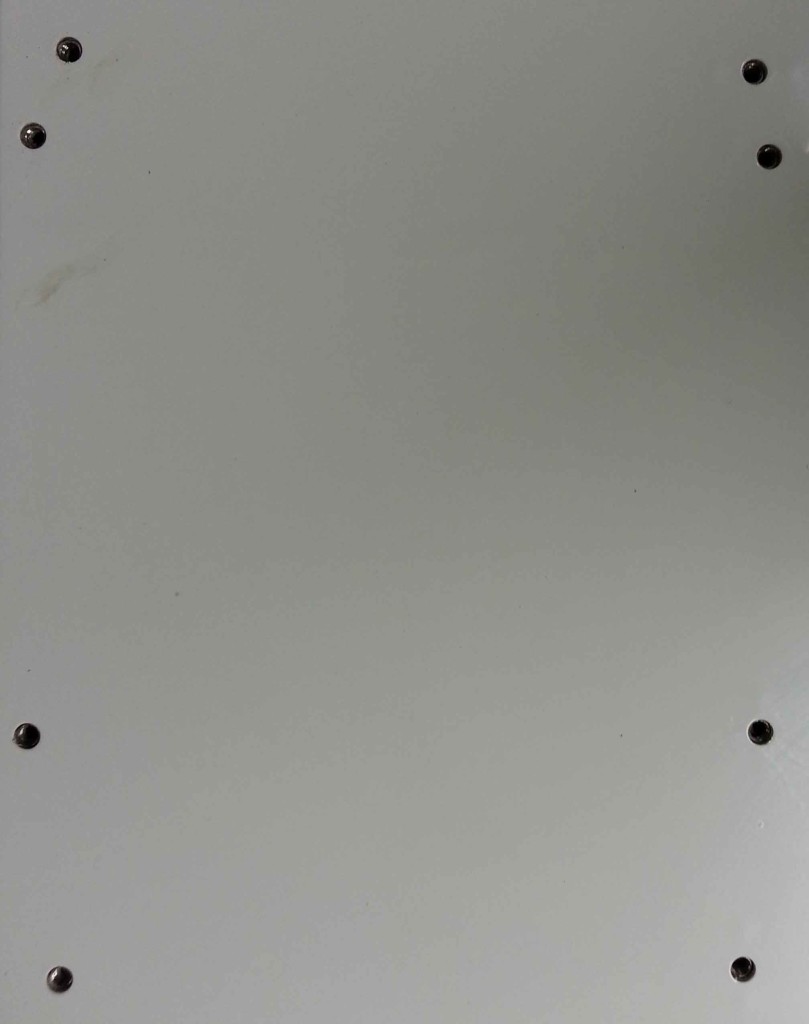

| Pump Mounting Plate | Holes drilled and tapped for most 5hp & 9hp gas engines | Yes |

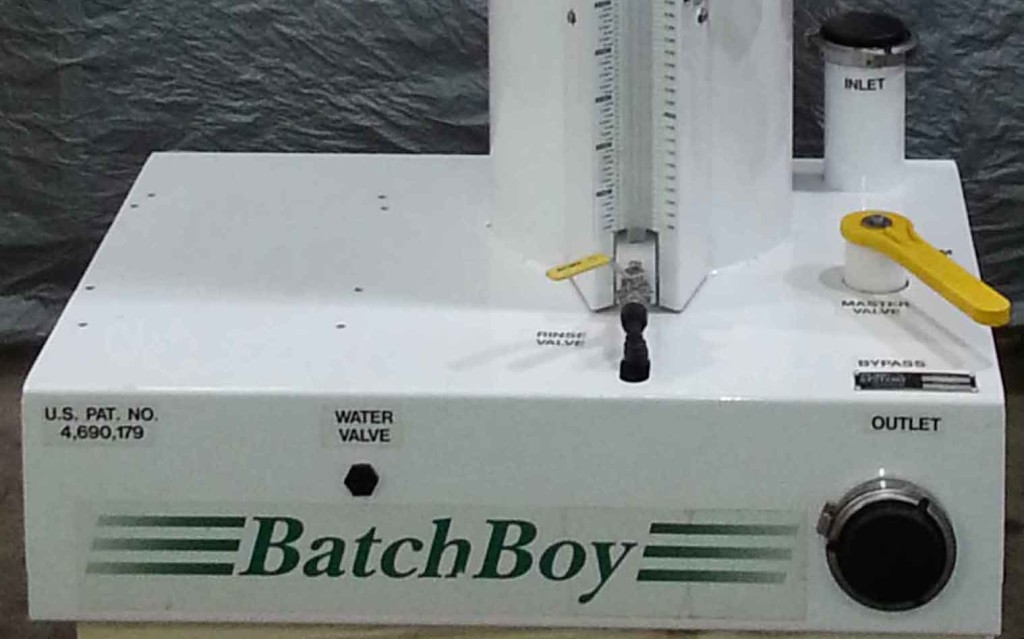

Base
| Description | Notes | Specification |
|---|---|---|
| Width | From front to back | 24.5″ |
| Length | From side to side | 36.5″ |
| Height | To top of the base | 9″ |
Mounting Holes
| Description | Notes | Specification |
|---|---|---|
| Number of Holes | 4 | |
| Length | Distance between holes, side to side | 33.5″ |
| Width | Distance between holes, front to back | 21.75″ |
| Size | Size of hole | 0.375″ |
Material of Construction
| Description | Notes | Specification |
|---|---|---|
| Measuring Chamber | All metal exposed to chemical | Stainless Steel |
| Base | Mounting base | Stainless Steel |
| Plastic | Components exposed to chemical | Polypropylene |
| Elastomers | Orings and the rubber boot | Viton |
| Sight Tube | Teflon | |
| Hoses | EPDM | |
| Plastic plumbing fittings | Polypropylene | |
| Metal plumbing fittings | Stainless Steel |
Plumbing Connections
| Description | Notes | Specification |
|---|---|---|
| Inlet | Pipe thread size, female | 3″ manifold |
| Outlet | Pipe thread size, female | 3″ manifold |

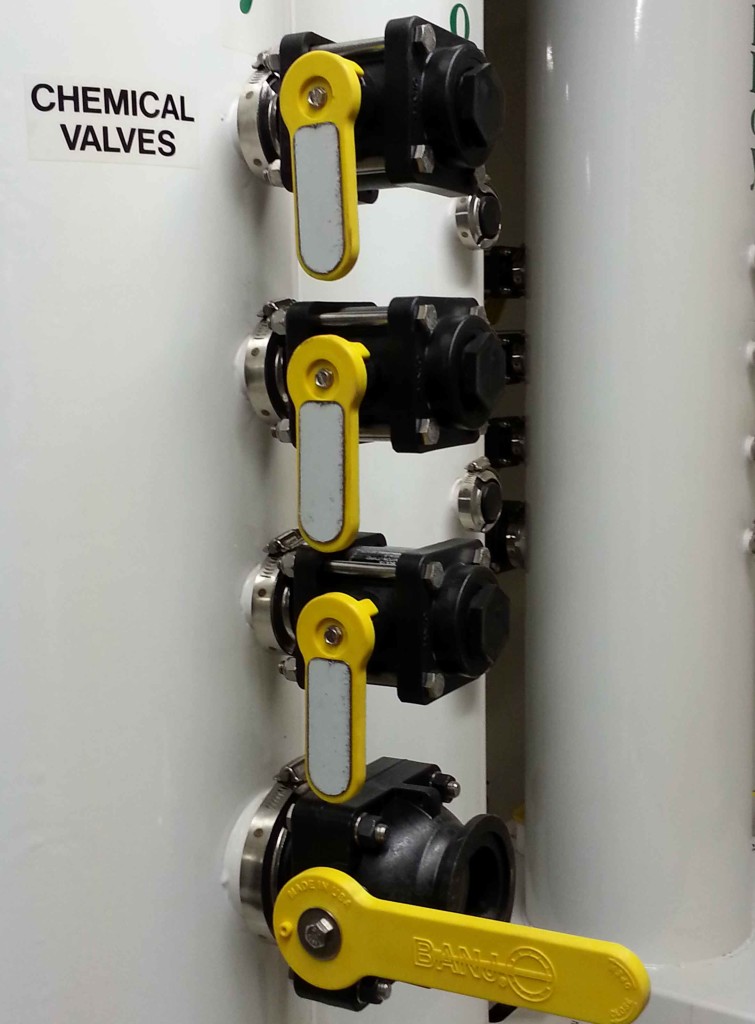

Chemical Valves
| Description | Notes | Specification |
|---|---|---|
| Number of Valves | 4 included with provisions for 4 additional 1″ valves | |
| Size | Manifold size | (1) 2″ and (3) 1″ |

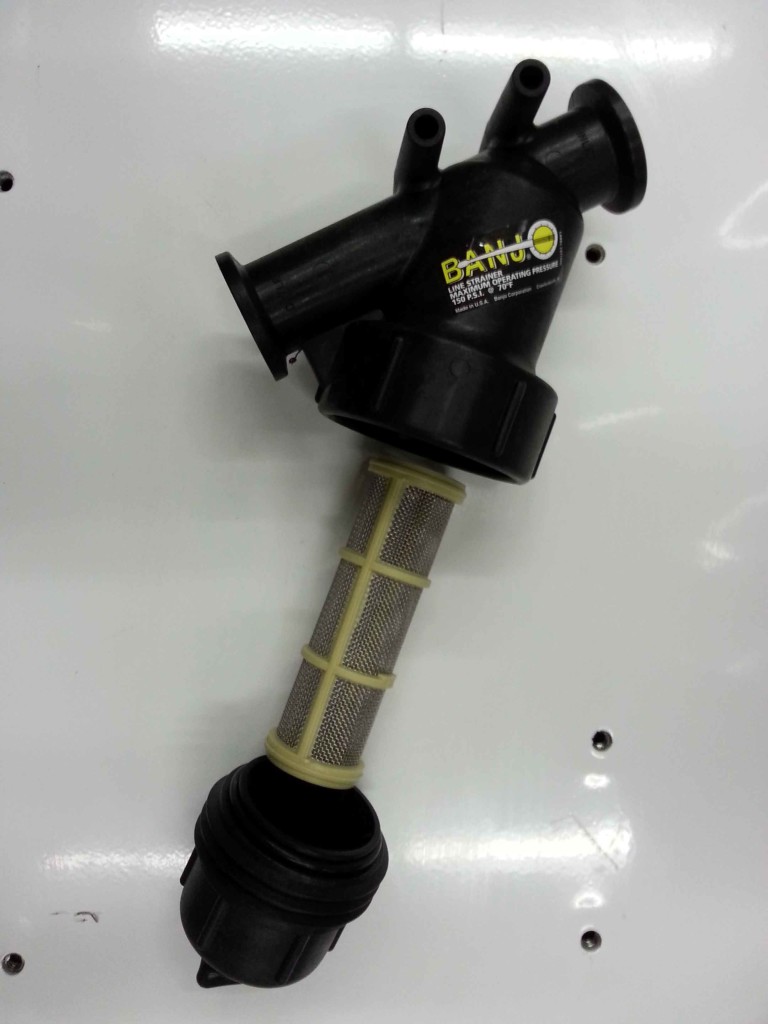

Strainer
| Description | Notes | Specification |
|---|---|---|
| Size | Manifold | 1″ |
| Mesh | Mesh size of internal screen | 20 mesh |

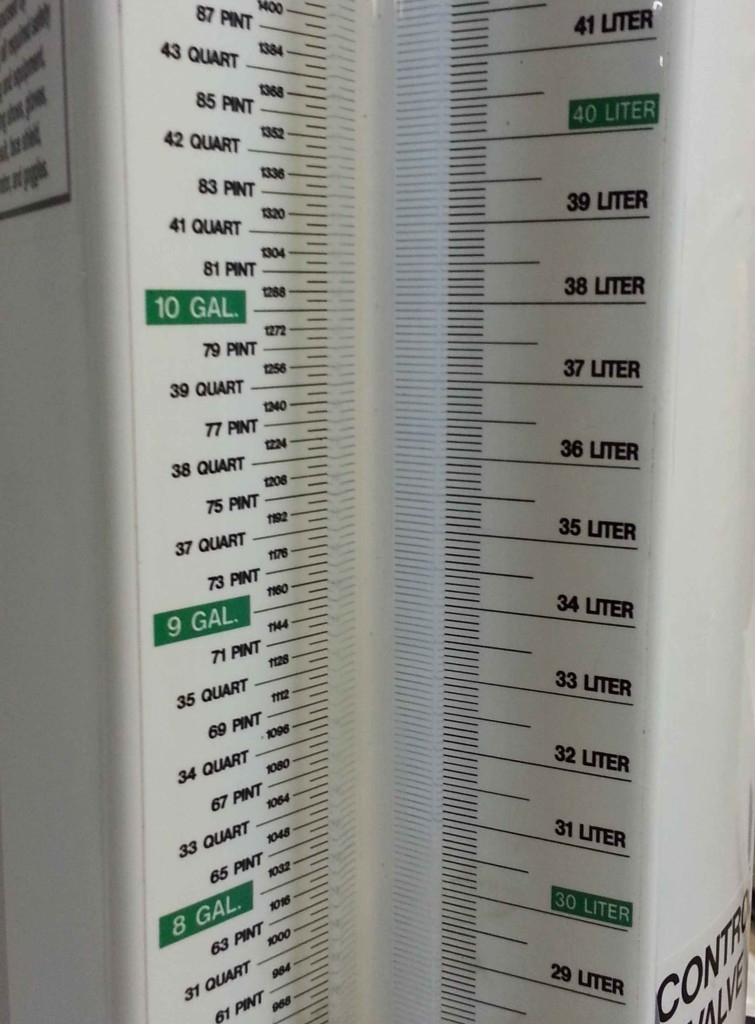

Graduations
| Description | Notes | Specification |
|---|---|---|
| English | Gallons, Quarts, Pints, Ounces | 4 Ounces |
| Metric | Liters | 1/10 Liter |
